Cable Rotary Union Integrate Gigabit Ethernet And Power
This slip ring is designed for Ethernet transmission, compatible with data bus protocol, it can transmit Ethernet, analog/data signals,USB,RS,Canbus and firewire in a continuous rotation of 360 degrees,Good connector makes a convenient connection
with quick plug in,high rotating precision, reliable performance.
Features
- Ethernet signal integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- Low friction, long life,low torque, smooth rotation
- Transmit data and analog signal,compatible with data bus protocol
Applications
- Computer technology
- Construction engineering
- Industrial equipment
Optional
- Housing material
- Circuit number
- Current rating
- Installation way
- IP protection grade
Specification
| ECN000-05P1-01EG |
| Current | 5*5A;1*Gigabit Ethernet |
| Voltage | 0~380VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance | 500MΩ@500VDC(power) 100MΩ@300VDC(signal) |
| Operating speed | 0-1000 rpm |
| Contact material | gold to gold |
| Operating temperature | -20~+60℃ |
| Rotation way | flange installation |
| IP protection grade | IP54 |

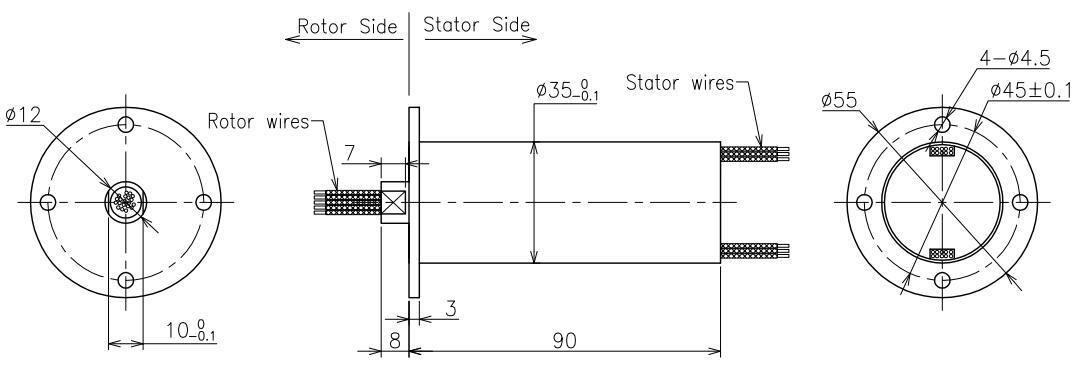

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
